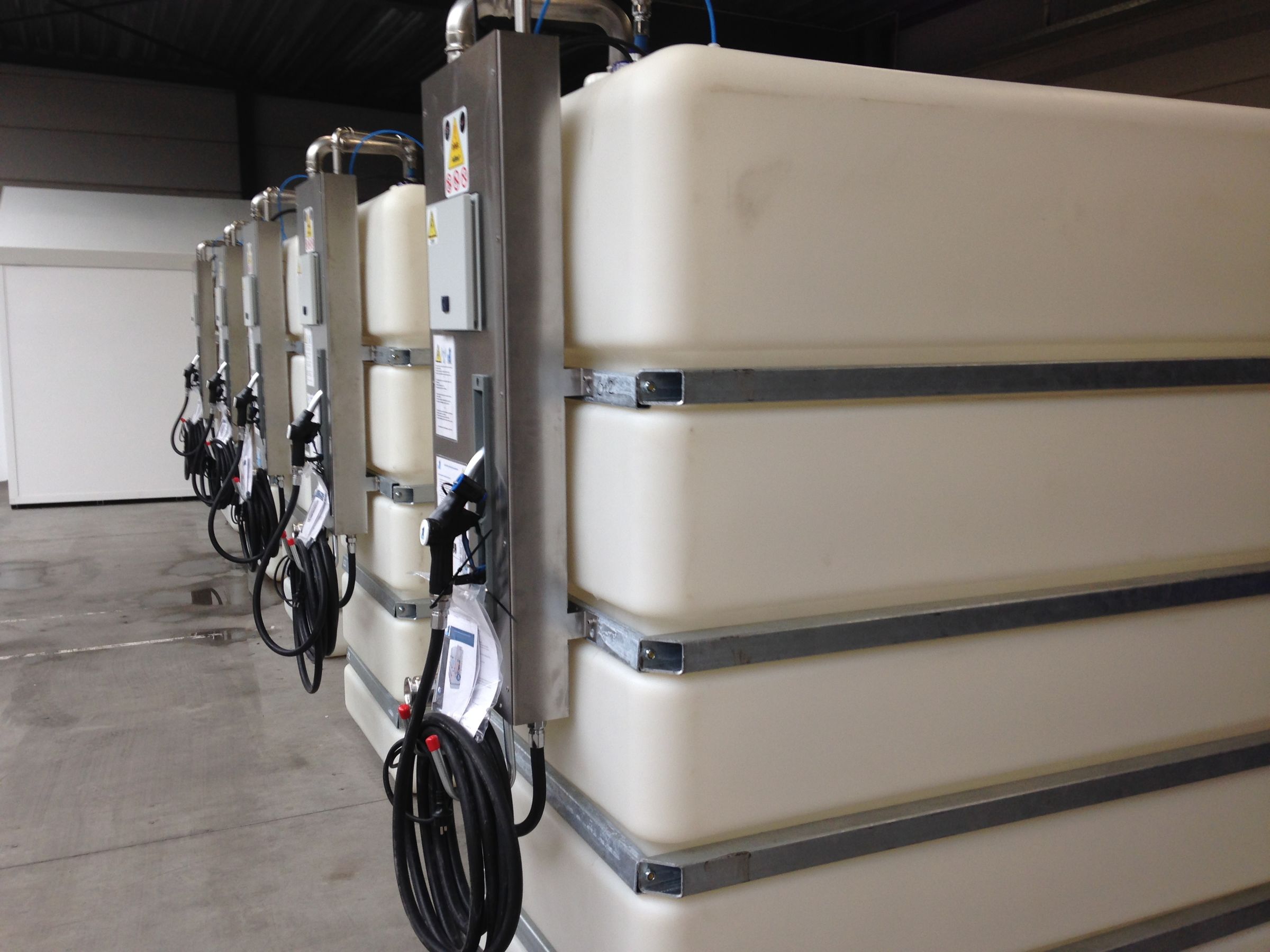

BlueBox Eco

The Blue1 BlueBox-Eco is specially developed for transport companies who want to purchase their AdBlue in bulk deliveries with a price advantage as a result. This solution, which offers an optimal combination between price and quality, is engineered and built according to the highest quality standards, to make sure that your AdBlue keeps its 100% purity.

Download PDF

Installation of the unit

As the unit is developed for plug and play purpose, no precautionary actions have to be taken besides a regular power supply and a flat surface.

Piping

All piping is 16 bar approved and is always in Stainless Steel.

Filling up the unit

The Dry Disconnect Coupling makes sure that all deliveries will occur without leakage.

Filling up your SCR-truck

The unit is equipped with an automatic nozzle. A standard hose length of 5m which gives you the necessary flexibility to fill up your SCR-truck in a safe, fast and cost-efficient way.

Dimensions

LxWxH= 2.250x1.020x2.100

Maximum power consumption

1000W, 10A, 230V
