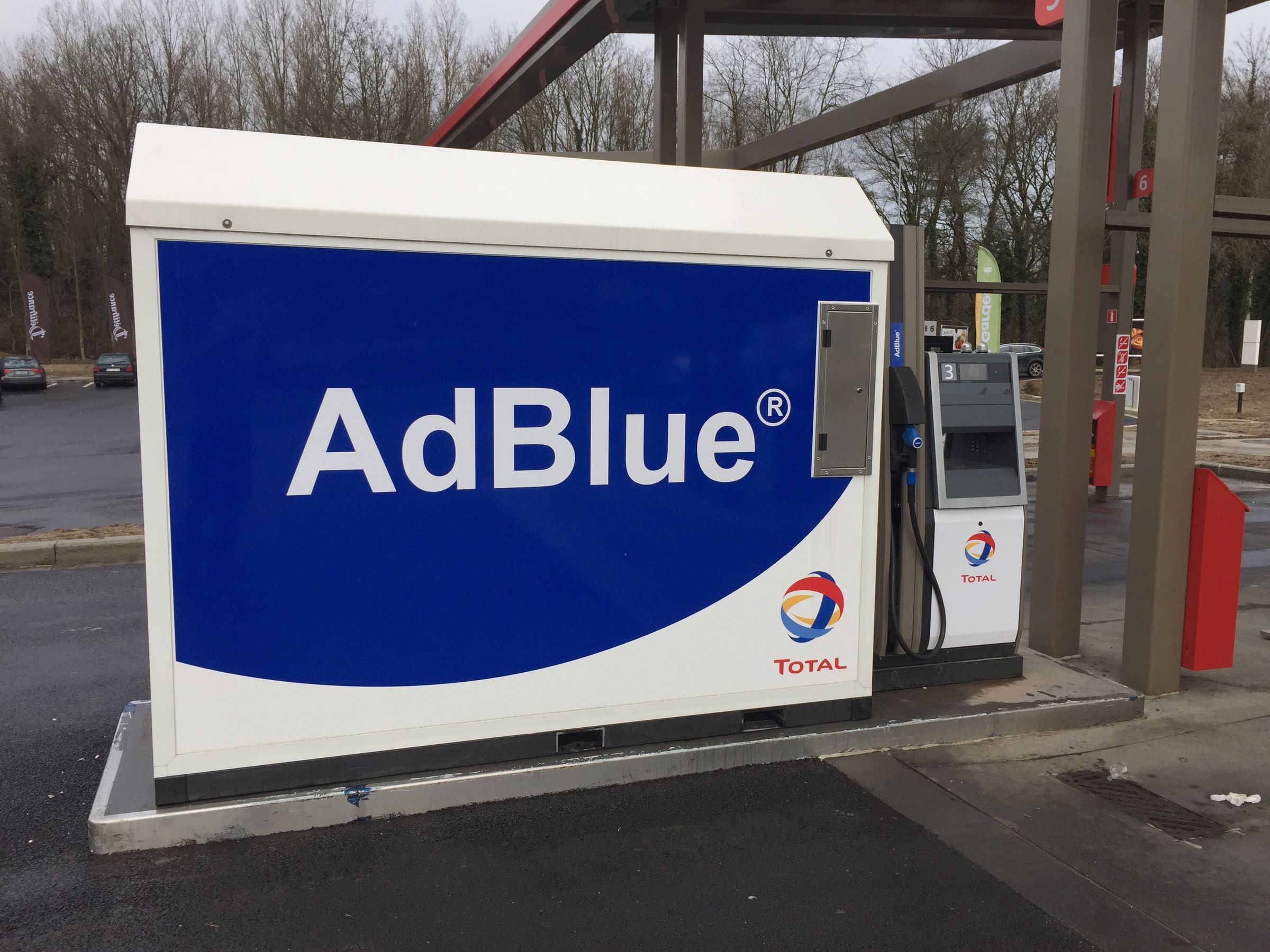

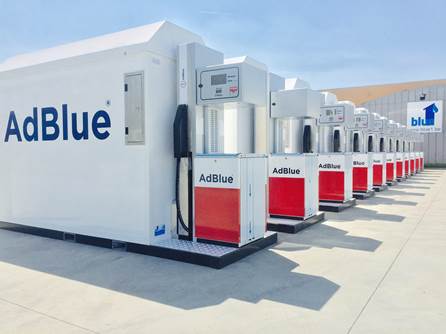

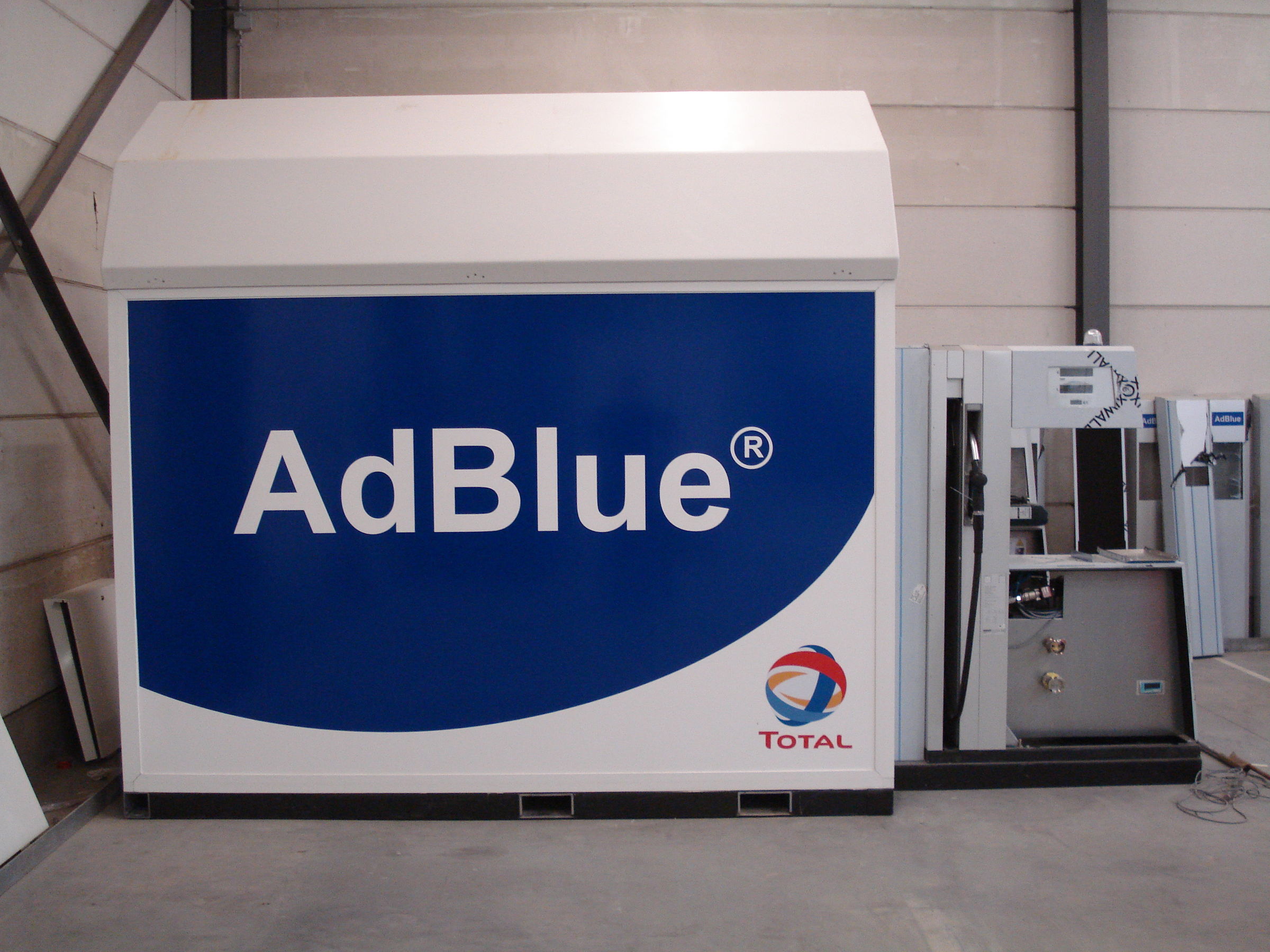

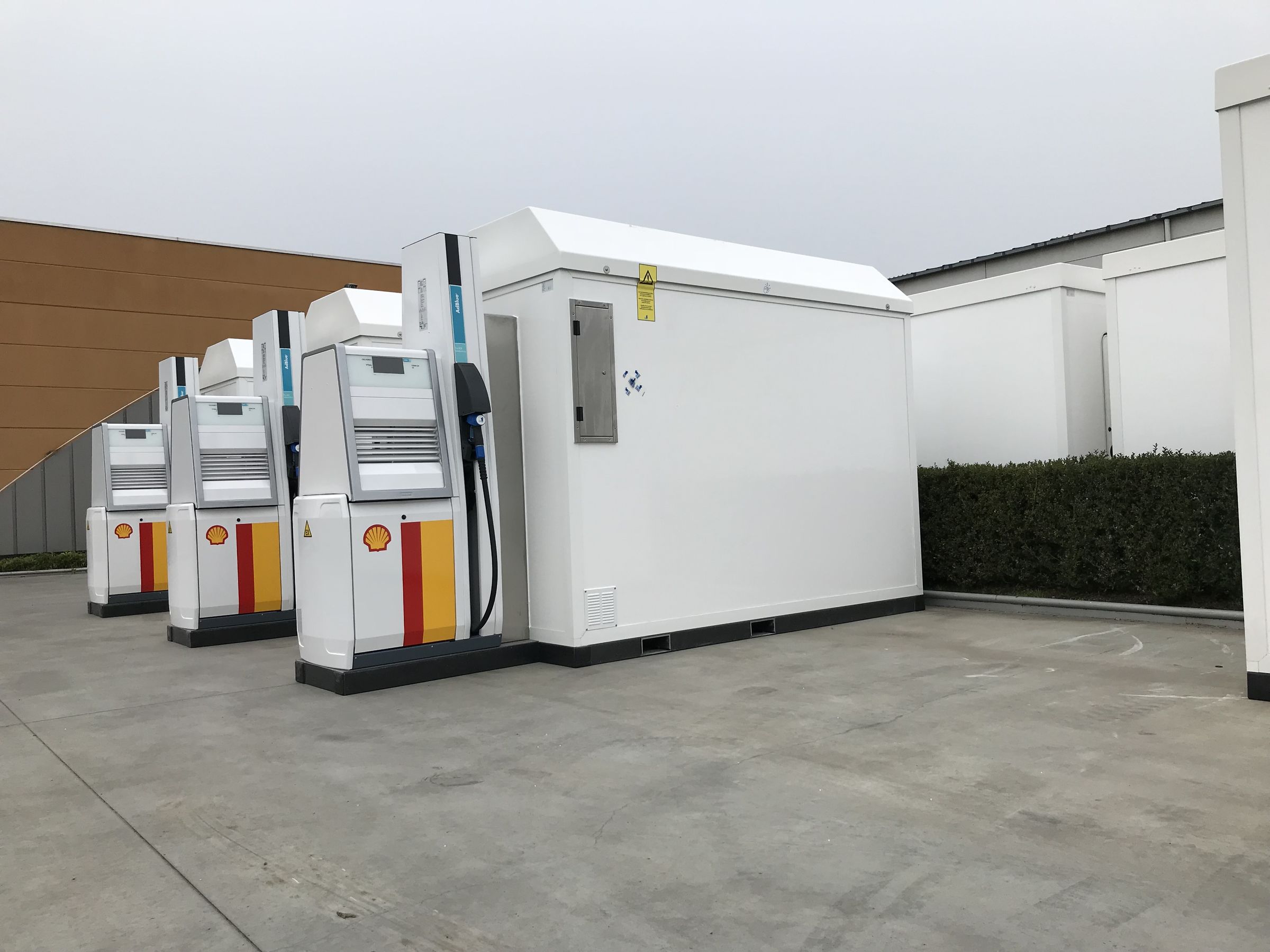

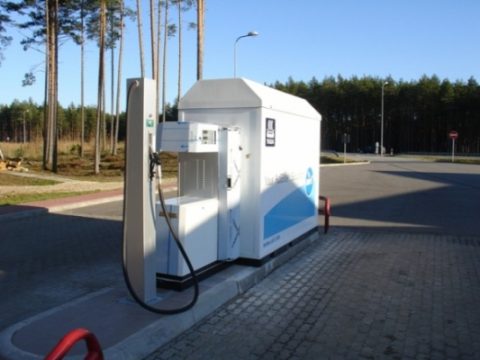

Blue1 Compact Forecourt Solution

Blue1 Compact 2021.pdfThe BLUE1 Compact is an AdBlue Solution which is developed for retail applications (weights and measurements approved) in accordance to the needs of existing petrol stations. The unit can be connected to all possible POS-systems in accordance to the attached dispenser. This Solution, which offers an optimal combination between price and quality, is engineered and built according the highest quality standards, to make sure that your AdBlue keeps its 100% purity.

Download PDF

Product specifications

Plug and play - Bunded storage tank - Volume 1000L up to 15000L - Stainless steel piping - DDC-coupling - Submersible pump up to 40L/min - Dry run security - Heating - Level gauge indication - Litre display - Overfill protection - EX attestation of Conformity as an option - Telemetry as an option

Principle

The housing is built up out of insulated fibreglass reinforced sandwich elements and is divided into 2 compartments:

Compartment 1 is completely product tight and acts as a bund
Compartment 2 is the technical compartment in which the unit can be serviced and filled up.

The installation is build with a dispenser mounting platform to easely connect all types of dispensers.

Filling up the unit

The unit is filled up through a side fill compartment in stainless steel.

Advantage:

Easy to access
The supplier doesn’t have to open the dispenser
The Dry Disconnect Coupling makes sure that all deliveries will occur without leakage and on the other hand the overfill prevention will make sure that an overfill of the unit is impossible.

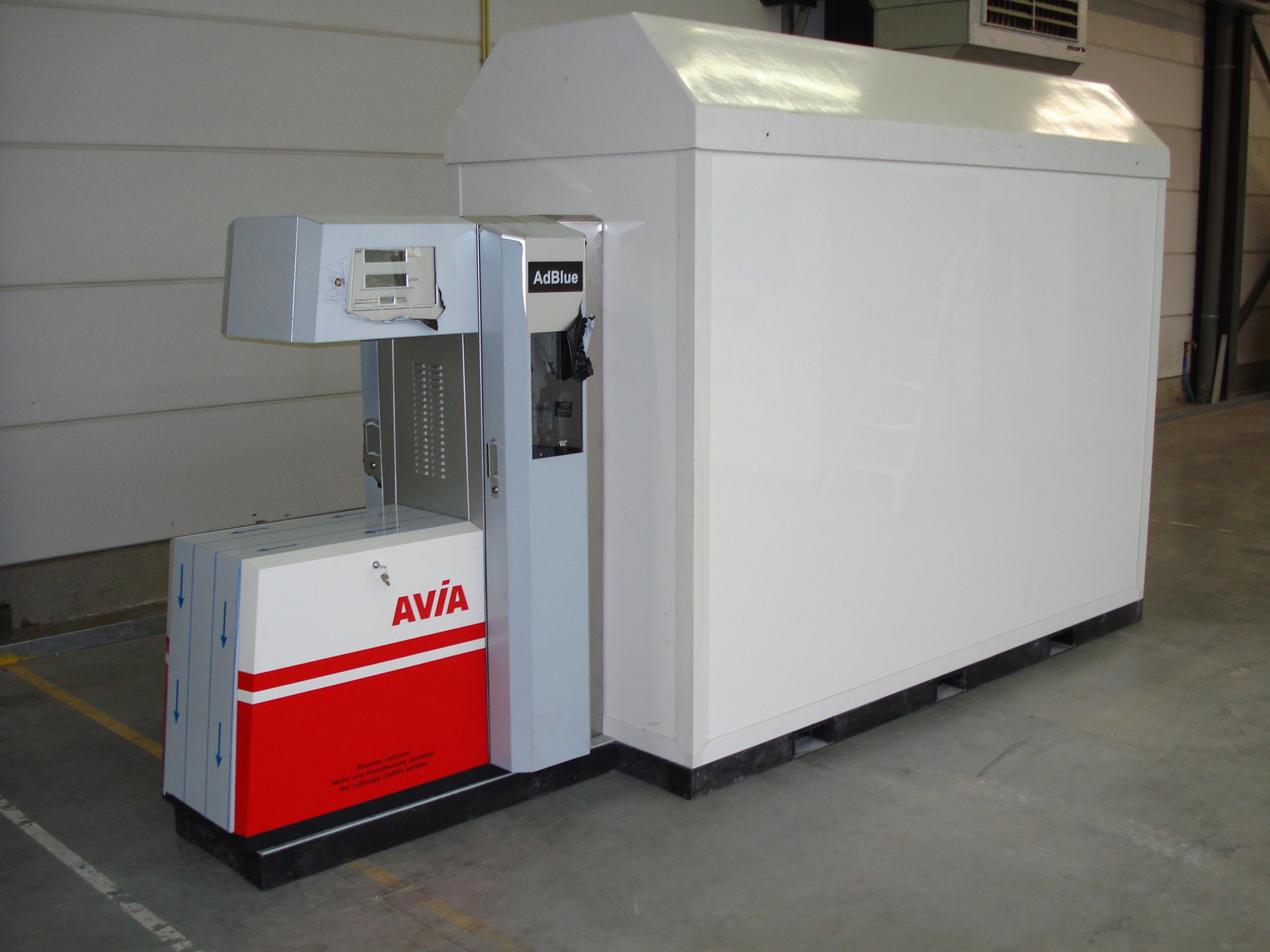

Connection to dispenser

The unit is completely prepared to connect all types of dispensers. The dispenser can be mounted on the platform which is attached to the installatioin.
